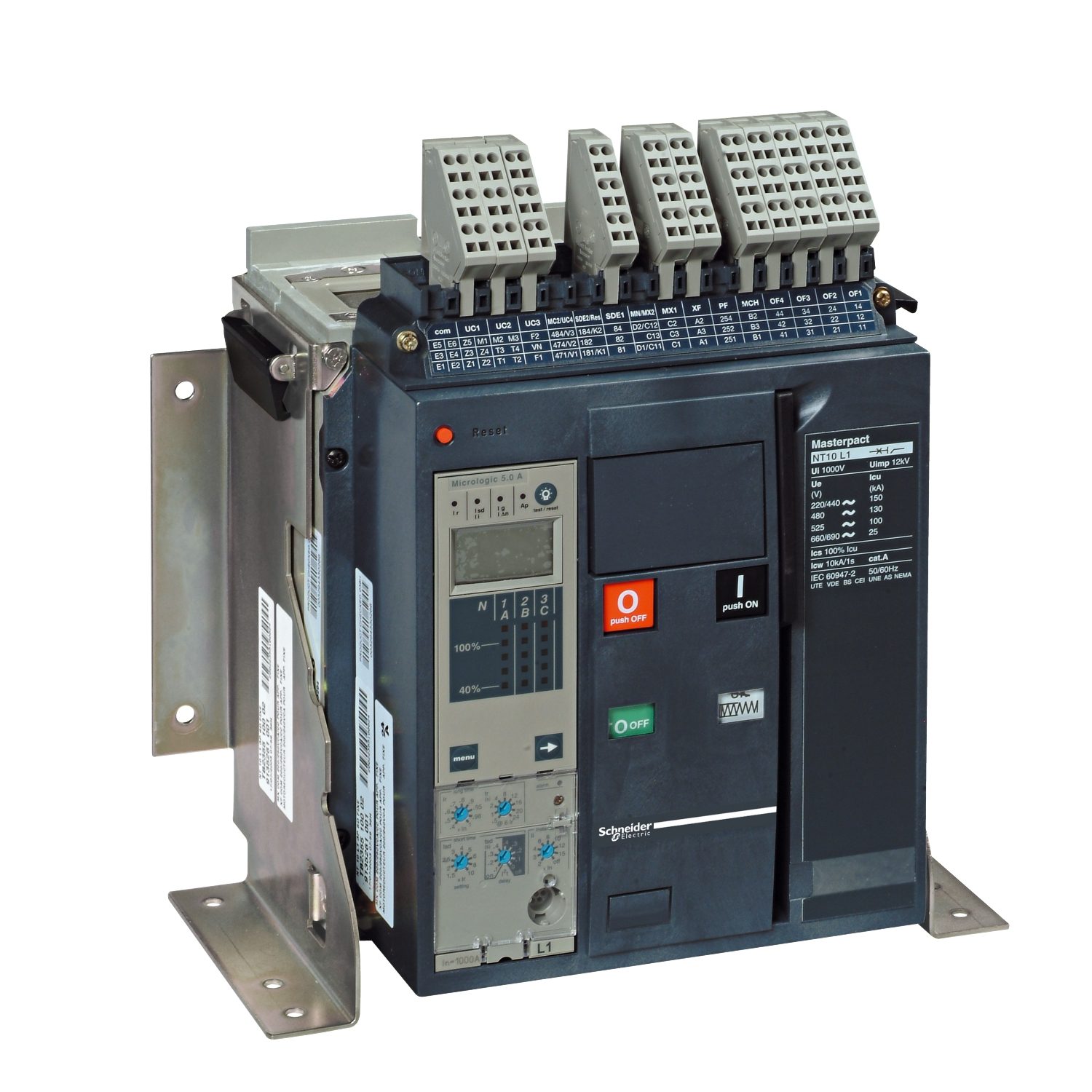

کليد هوایی اشنایدر الکتریک 1000 آمپر سه پل سری NT قدرت قطع 50kA و میکرولوجیک 6
circuit breaker Masterpact NT10H2 – 1000 A – 3 poles – fixed – w/o trip unit
توضیحات
کليد هوایی اشنایدر الکتریک 1000 آمپر سه پل سری NT قدرت قطع 50kA و میکرولوجیک 6
اشنایدر
47131 – کليد هوایی 1000 آمپر سه پل سری NT قدرت قطع 50kA
NT10H23P6AF – میکرولوجیک 6
circuit breaker Masterpact NT10H2 – 1000 A – 3 poles – fixed – w/o trip unit
| range of product |
Masterpact NT
|
|
|---|---|---|
| product or component type |
Basic frame
|
|
| device short name |
Masterpact NT10
|
|
| circuit breaker name |
Masterpact NT10H2
|
|
| poles description |
3P
|
|
| network type |
AC
|
|
| breaking capacity code |
H2
|
|
| suitability for isolation |
Yes conforming to IEC 60947-2
|
|
| utilisation category |
Category B
|
network frequency |
50/60 Hz
|
|
|---|---|---|
| control type |
Push-button
|
|
| mounting mode |
Fixed
|
|
| [In] rated current |
1000 A at 40 °C
|
|
| [Ui] rated insulation voltage |
1000 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| [Uimp] rated impulse withstand voltage |
12 kV conforming to IEC 60947-2
|
|
| [Icm] rated short-circuit making capacity |
88 kA 525 V AC at 50/60 Hz
88 kA 690 V AC at 50/60 Hz 105 kA 220/415 V AC at 50/60 Hz 105 kA 440 V AC at 50/60 Hz |
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| circuit breaker CT rating |
1000 A
|
|
| breaking capacity |
42 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
42 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-2 |
|
[Ics] rated service breaking capacity |
42 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
42 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 220/415 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| protection type |
Without protection
|
|
| mechanical durability |
12500 cycles without maintenance conforming to IEC 60947-2
|
|
| electrical durability |
3000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2
6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 AC-23A: 3000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 AC-23A: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 AC-3: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 |
|
| connection pitch |
70 mm
|
|
| [Icw] rated short-time withstand current |
20 kA 3 s conforming to IEC 60947-2
42 kA 0.5 s conforming to IEC 60947-2 42 kA 1 s conforming to IEC 60947-2 |
|
| integral instant protection |
81…99 kA
|
|
| maximum breaking time |
25 ms
|
|
| maximum closing response time |
50 ms
|
|
| height |
301 mm
|
|
| width |
276 mm
|
|
| depth |
196 mm
|
| standards |
IEC 60947-2
|
|
|---|---|---|
| product certifications |
ASEFA
LCIE |
|
| pollution degree |
3 conforming to IEC 60664-1
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
15.69 kg
|
|
| Package 1 Height |
25 cm
|
|
| Package 1 width |
40 cm
|
|
| Package 1 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information |
Yes
|
|
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
Product Environmental Profile
|
|
| Circularity Profile |
End of Life Information
|
| Warranty |
18 months
|
|---|
